Dash Panel

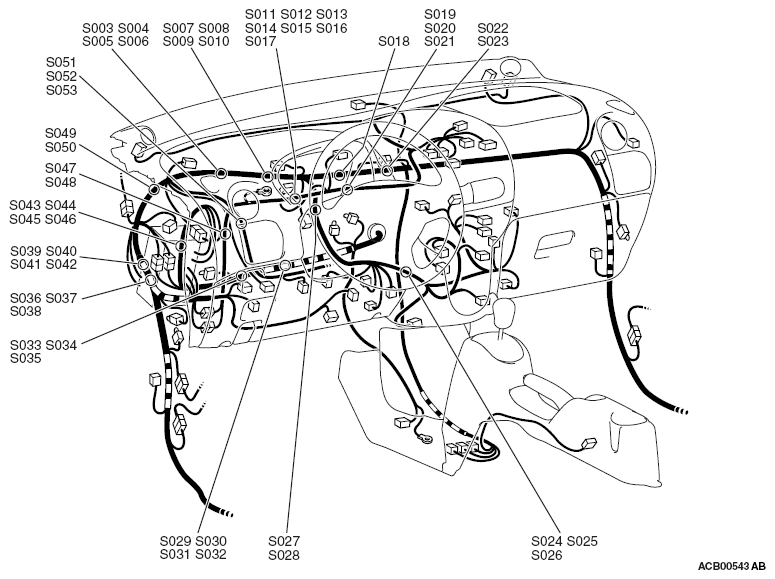

Fig 1: Identifying Splice Locations - Dash Panel
G08297924Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

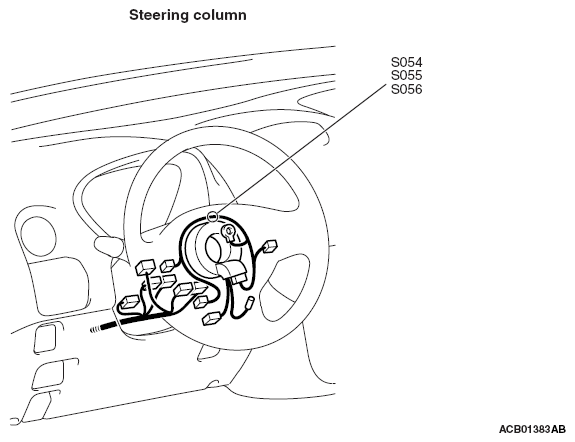

Fig 2: Identifying Splice Locations - Dash Panel (Steering Column)
G08297925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
