Actuator Test Reference Table
Using scan tool, the following actuators can be forcibly operated:
NOTE:
- ABS and ASC are operated by ASC-ECU.
- When ASC-ECU is disabled due to the fail-safe function, the actuator test cannot be performed.
- The actuator test can be performed only when the vehicle is stationary.
- While the actuator test is performed, the ABS warning light flashes at a rate of 2 Hz.
- While the actuator test is performed, the ASC indicator light and ASC OFF light illuminate.
- After the actuator test has been performed, the brake warning light, ABS warning light, ASC indicator light, and ASC OFF light illuminate until the electric motor switch is turned to ON again or the communication between scan tool and ASC-ECU is terminated.
ACTUATOR TEST SPECIFICATIONS
| Item No. | Check item | Driven component |
|---|---|---|
| 01 | FR wheel ABS drive | Solenoid valve for the corresponding channel of the hydraulic unit and pump motor (simplified inspection mode) |
| 02 | FL wheel ABS drive | |
| 03 | RR wheel ABS drive | |
| 04 | RL wheel ABS drive | |
| 05 | FR wheel TCL drive | |
| 06 | FL wheel TCL drive | |
| 07 | RR wheel TCL drive | |
| 08 | RL wheel TCL drive | |
| 09 | Electric motor unit TCL drive | Outputs the motor torque control signal (motor torque = 0 N.m (0 ft-lb)) to the EV-ECU for three seconds. |

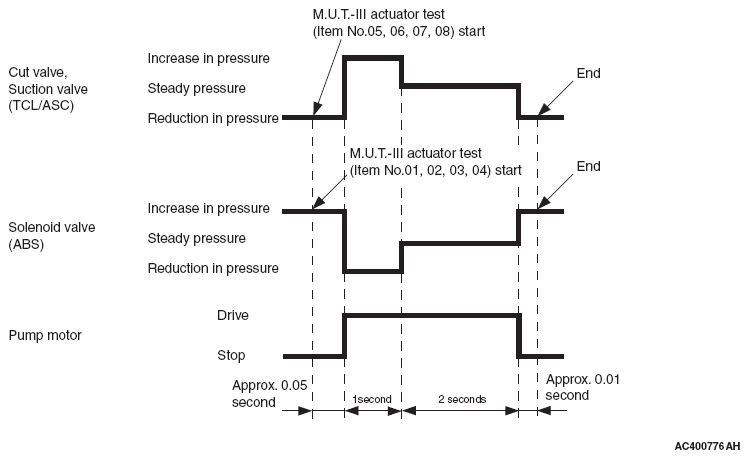

Operation pattern of items 01 to 08
