Home >> Mitsubishi >> 2012 >> i-MiEV ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Delta Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

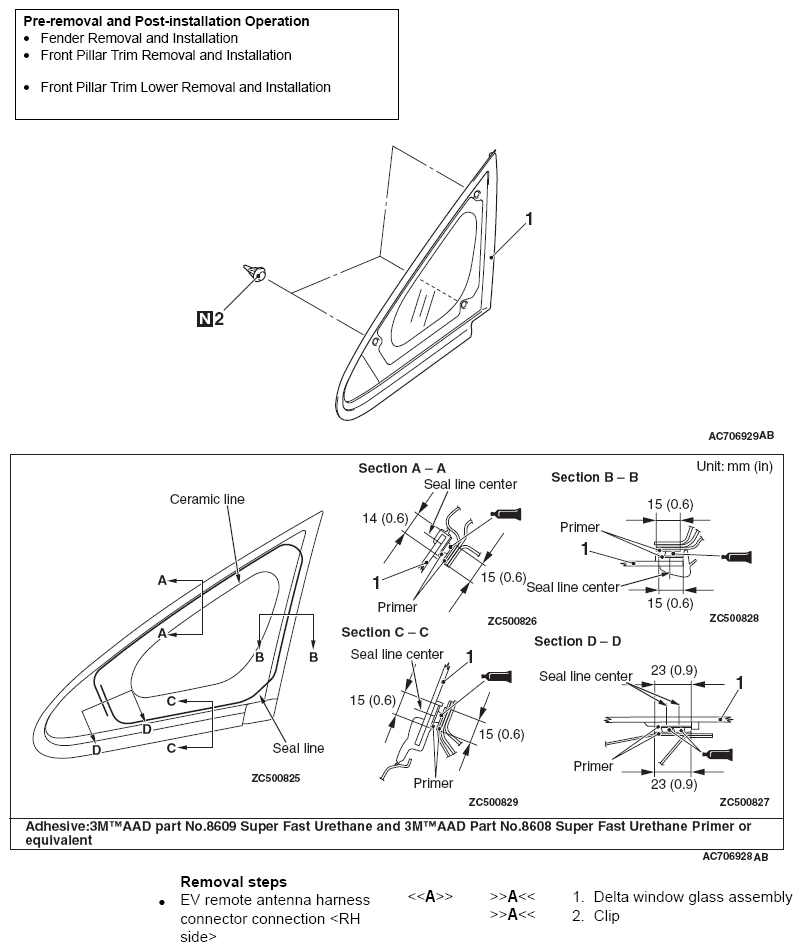

Fig 1: Identifying Delta Window Glass

G08301204

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
