Splash Shield
>>
Removal And Installation
Removal And Installation

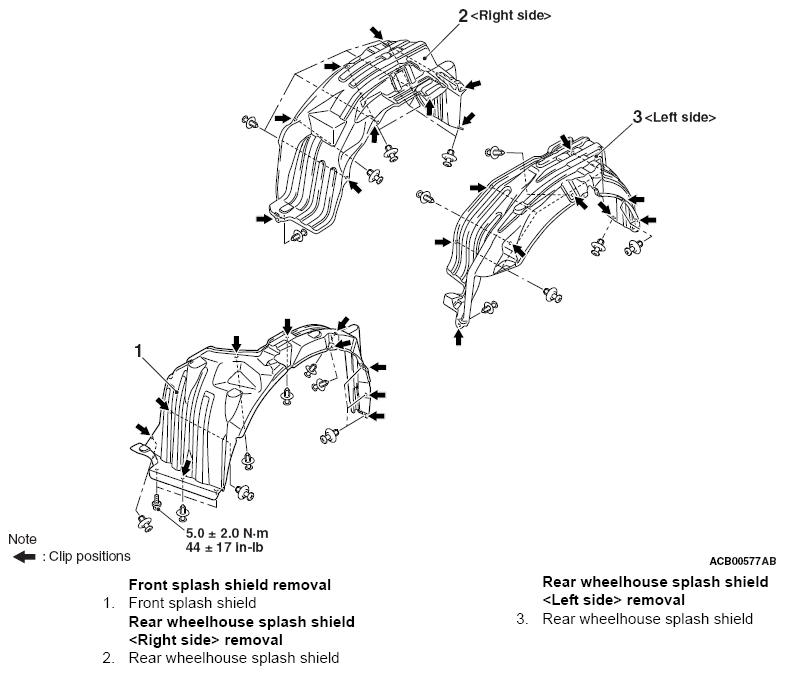

Fig 1: Locating Splash Shield Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
