Check The Power Window Relay

Battery voltage Terminal number Normal value
No current supply 1 - 3 No continuity
With current supply [terminal 4 (+) - terminal 2 (-)] 1 - 3 Continuity exists (2 Ω or less).

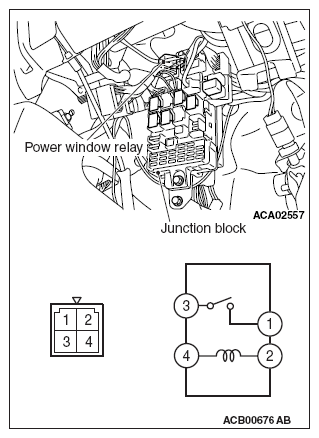

Fig 1: Identifying Power Window Relay And Junction Block
G08301283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
