Disassembly And Assembly: Notes

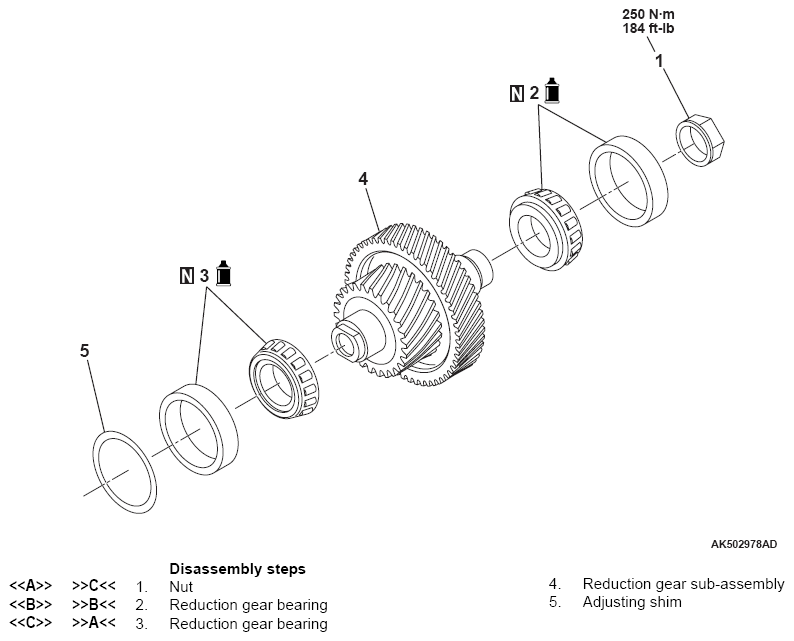

Fig 1: Reduction Gear Disassembly/Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MB990810: Side bearing puller
• MB990947: Lower arm push arbor
• MD999566: Crow
• MB990984: Mount bushing lower roll insulator arbor
• MD998917: Bearing remover
• MD998812: Installer Cap
• MD998813: Installer-100
• MD998819: Installer adapter (40)
