Home >> Mitsubishi >> 2012 >> RVR GT >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transaxle (CVT) Overhaul >> Forward Clutch >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

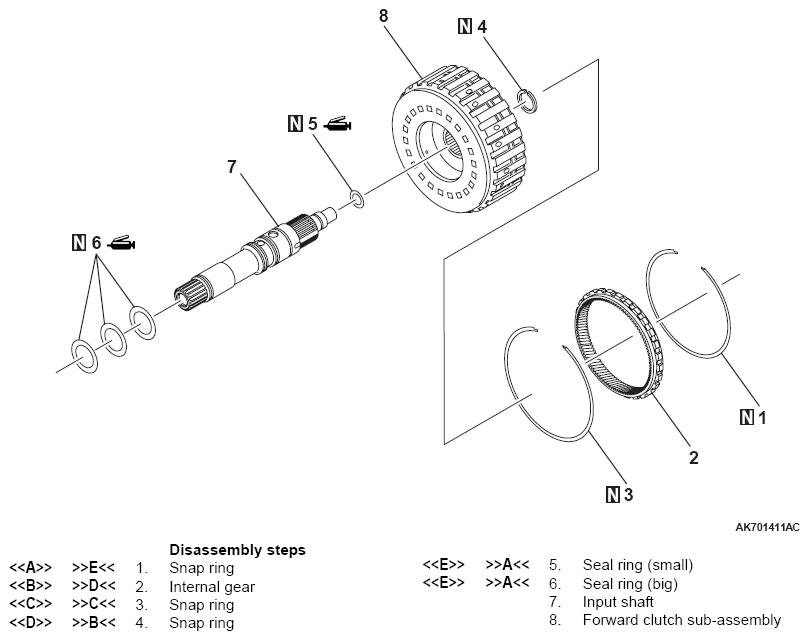

Fig 1: Identifying Forward Clutch Disassembly/Assembly Components
G07047908Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
