Differential Sub-Assembly: Assembly: Notes

CAUTION: The differential sub-assembly can only be assembled, not disassembled.

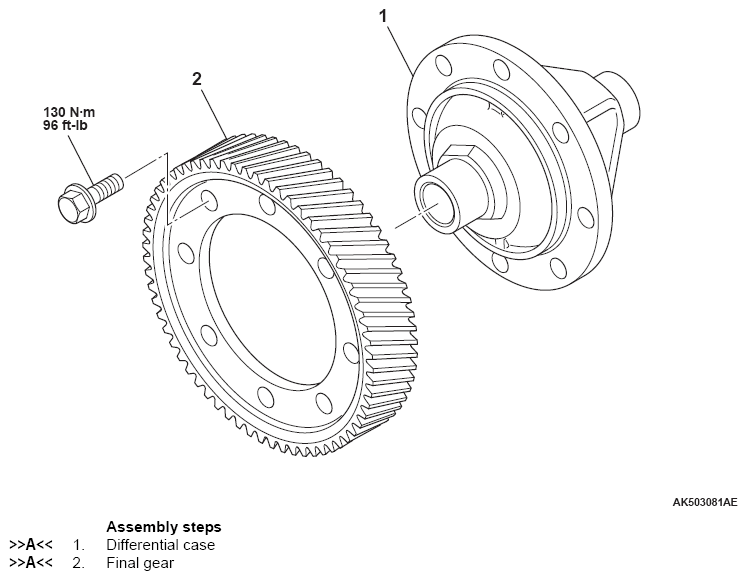

Fig 1: Differential Sub-Assembly Replacement Components With Torque Specifications
G07047937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
