Home >> Mitsubishi >> 2012 >> RVR ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Trims >> Interior Trim >> Removal And Installation

Removal And Installation

NOTE: For additional service information, refer to TSB A-PILLAR TRIM REPLACEMENT PROCEDURE - SERVICE MANUAL REVISION .

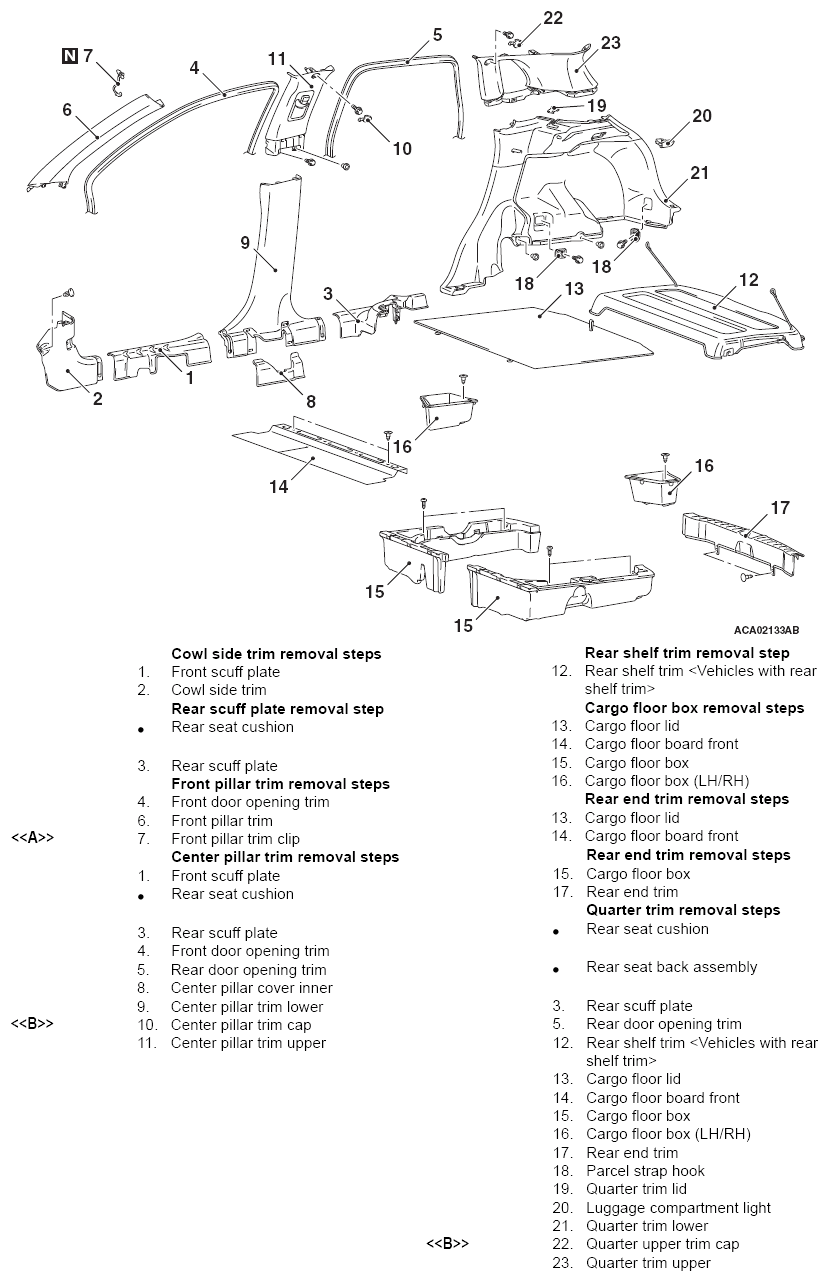

Fig 1: Identifying Interior Trim Remove/Install Components
G07049311Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
