Sunroof Switch Continuity Check

NORMAL RESISTANCE

Switch position	Terminal number	Normal value
Stop	3 - 4	Continuity exists (2 Ω or less)
OFF	3 - 4, 4 - 5, 4 - 6	No continuity
Open	4 - 5	Continuity exists (2 Ω or less)
Close	4 - 6	Continuity exists (2 Ω or less)

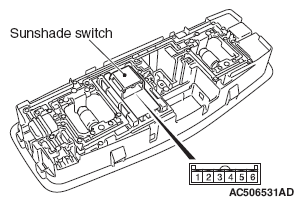

Fig 1: Identifying Sunshade Switch Connector Terminals

G07049334

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
