Sunshade Operation Current Check

Remove the sunshade fuse, and connect the circuit tester as shown in the illustration.
Operate the sunshade switch to ON, and measure at the intermediate section other than the sunroof activated, fully closed, and fully opened positions.
Standard value: 10 A or less (at 25°C)
Check the following areas if the operating current of the sunshade exceeds the standard value.
- Improperly installed sunshade, deformation or any foreign substances
- Drive cable fastening
- Tilting of sunshade

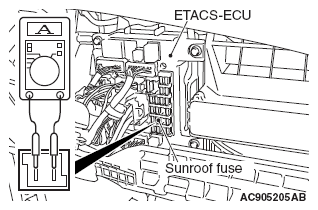

  Fig 1: Identifying Sunroof Fuse
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
