Disassembly And Reassembly: Notes

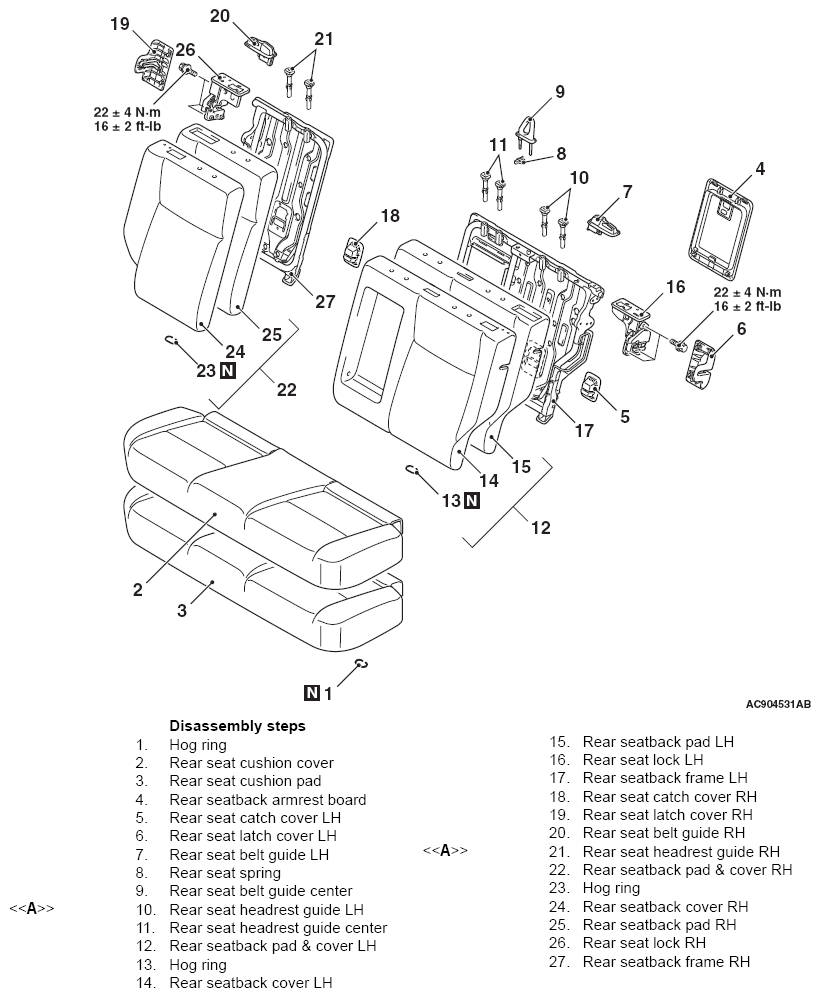

Fig 1: Rear Seat Cushion Assembly Replacement Components With Torque Specifications

G07049353

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
