Home >> Mitsubishi >> 2012 >> RVR ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Front Seat Assembly >> Removal And Installation

Removal And Installation

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE AIRBAG MODULE (S) .

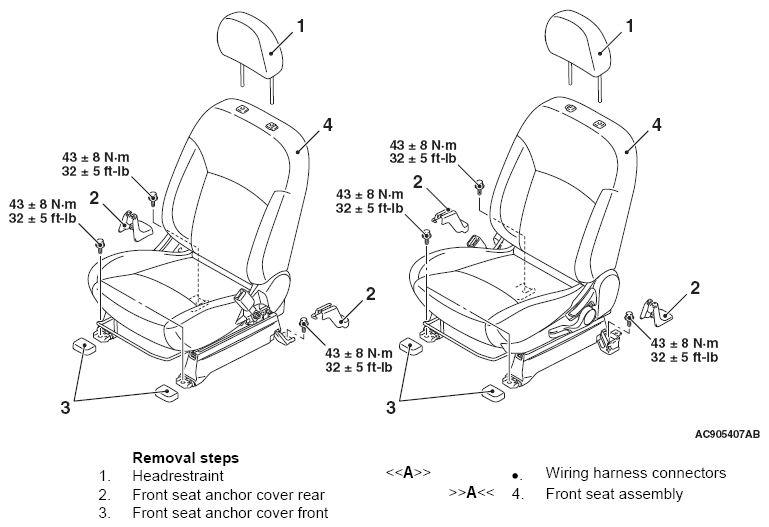

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G07049338Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
