Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

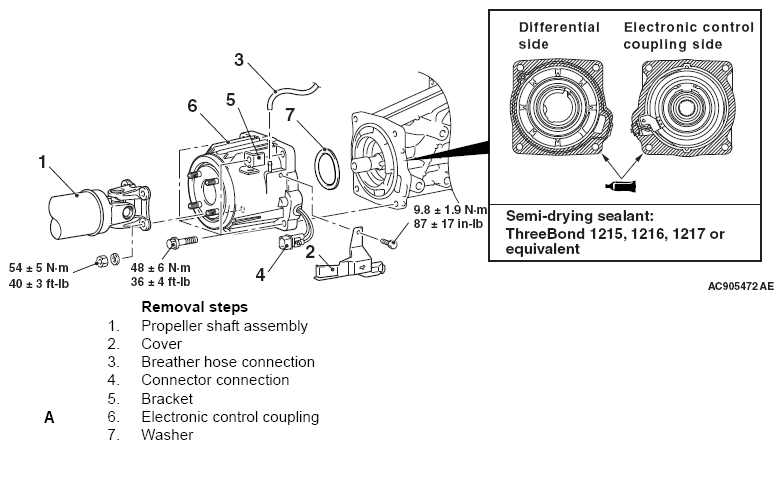

Fig 1: Electronic Control Coupling Replacement Components With Torque Specifications
G07048198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
