Home >> Mitsubishi >> 2012 >> RVR ES >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control MFI >> Exhaust Gas RECIRCULATION (EGR) System >> Removal And Installation >> Notes

Removal And Installation: Notes

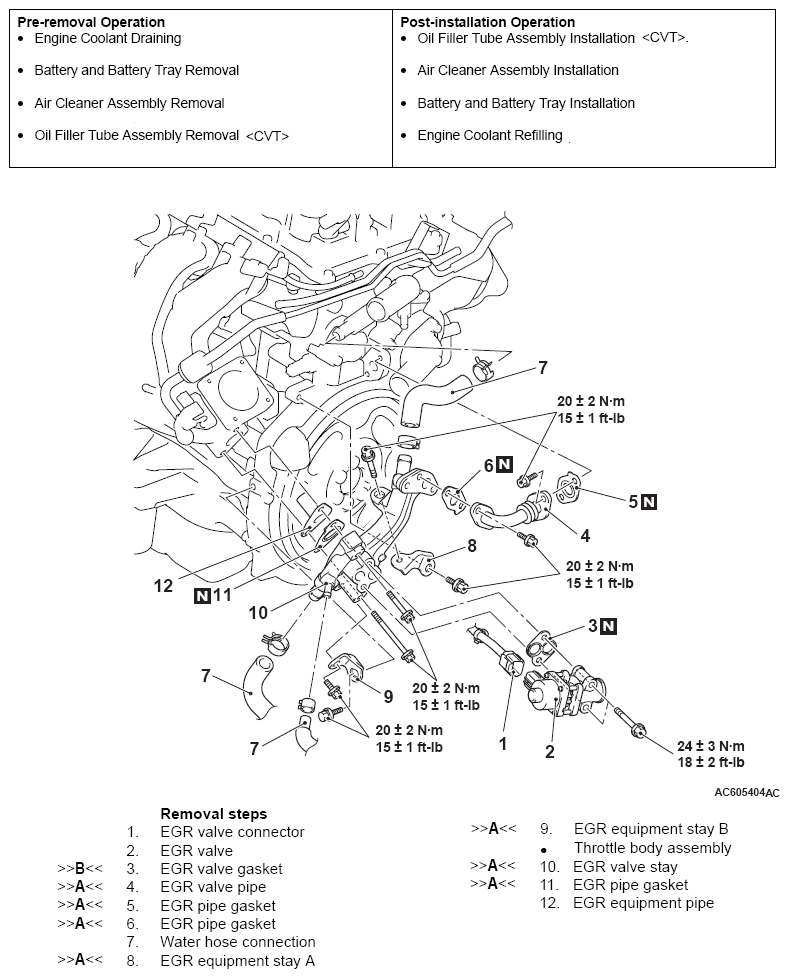

Fig 1: Exhaust Gas Recirculation (EGR) System Replacement Components With Torque Specifications

G07047384

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
