Removal And Installation: Notes

CAUTION:
  • When removing or installing the mass airflow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the mass airflow sensor that has been dropped.

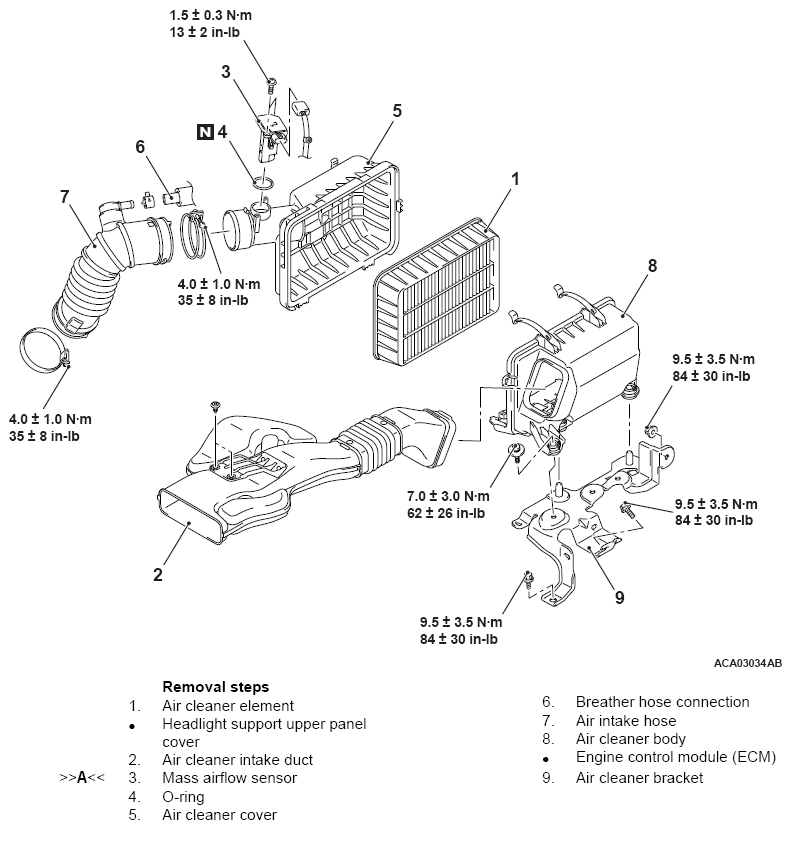

    Fig 1: Air Cleaner Replacement Components With Torque Specifications
    G07047241Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
