Home >> Mitsubishi >> 2012 >> RVR ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Panorama Glass Roof >> Removal And Installation >> Notes

Removal And Installation: Notes

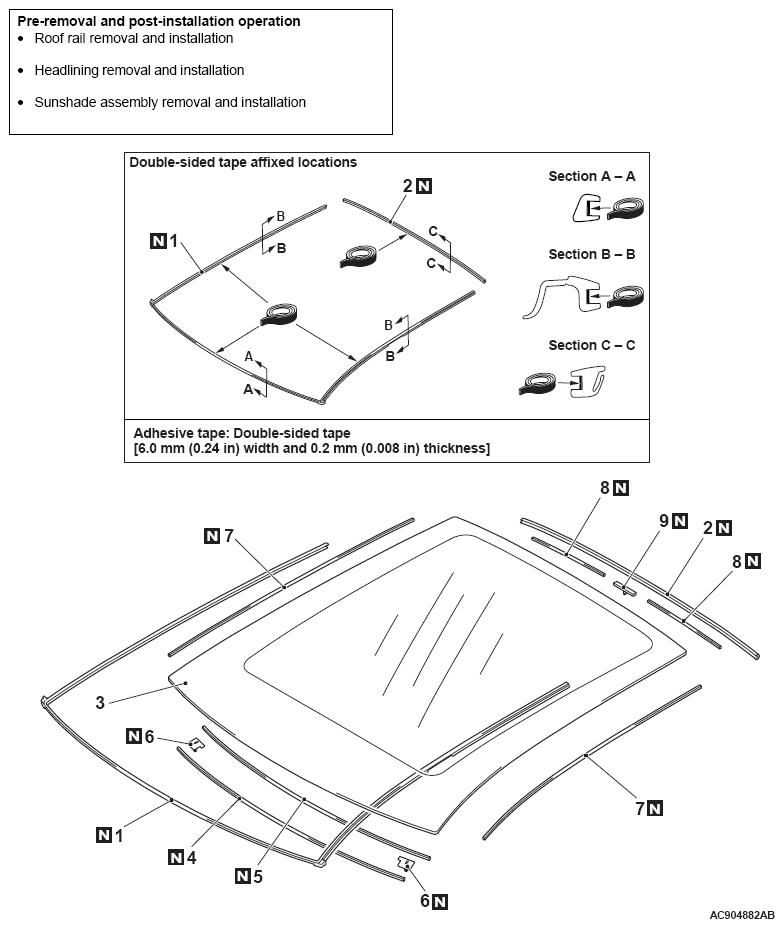

Fig 1: Identifying Panorama Glass Roof Remove/Install Components (1 Of 2)
G07048598Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

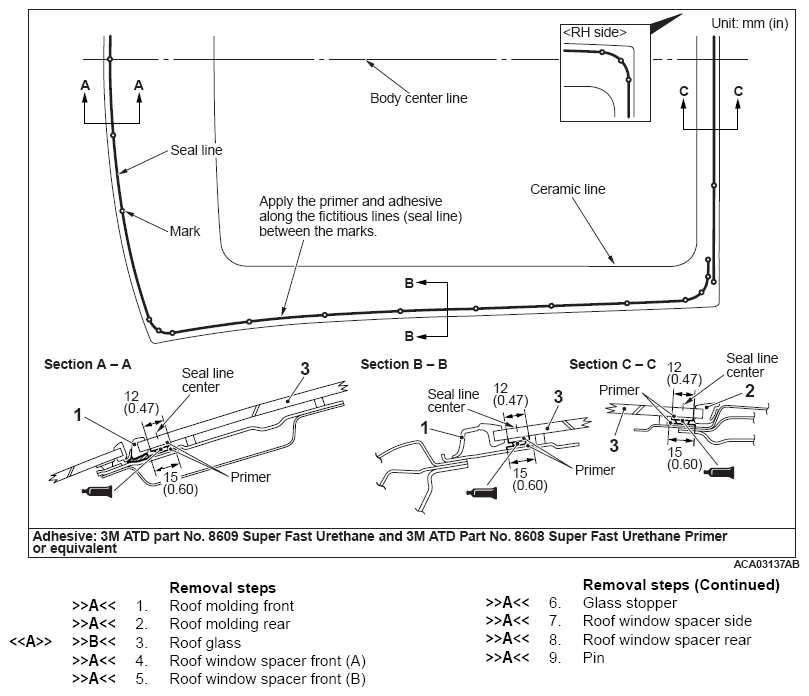

Fig 2: Identifying Panorama Glass Roof Remove/Install Components (2 Of 2)
G07048599Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
