Mitsubishi
>>
2012
>>
Outlander Sport ES, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition Coil
>>
Removal And Installation
Removal And Installation

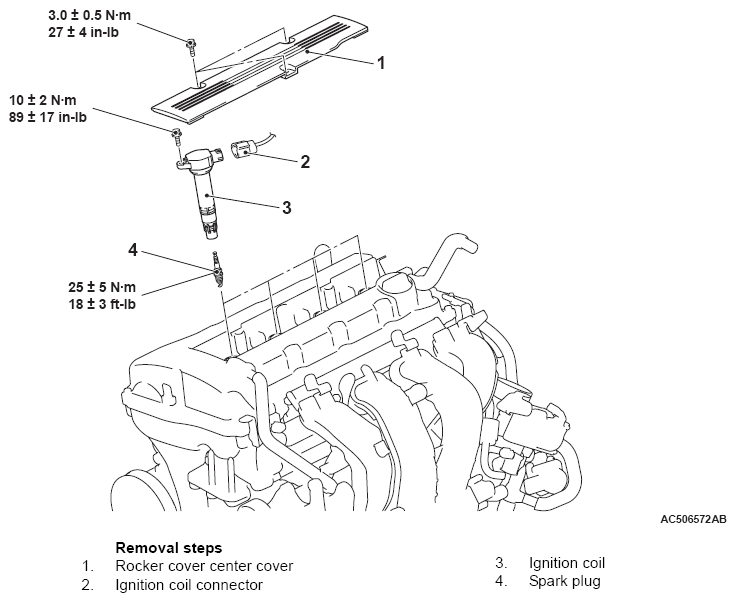

Fig 1: Ignition Coil Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
