Mitsubishi
>>
2012
>>
Outlander Sport ES, Standard Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Starter Motor Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

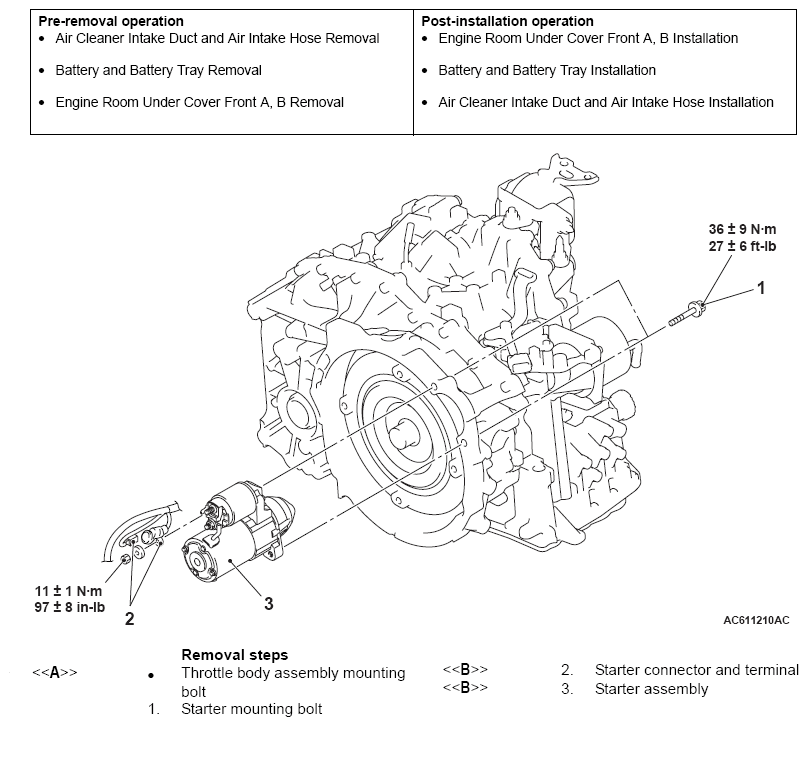

Fig 1: Starter Motor Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
