Removal And Installation: Notes

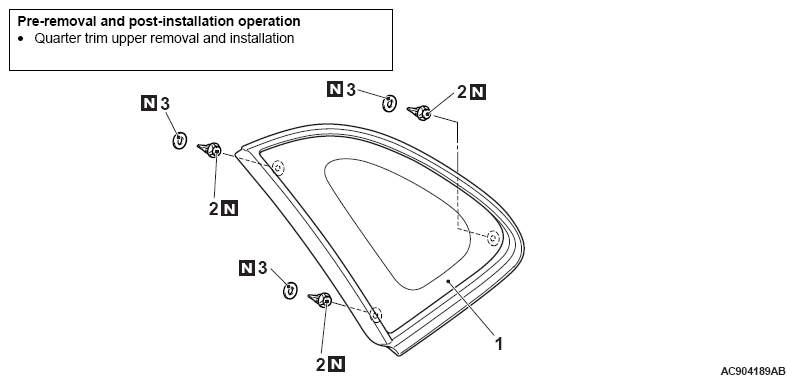

Fig 1: Identifying Quarter Window Glass Remove/Install Components (1 Of 2)
G07048589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

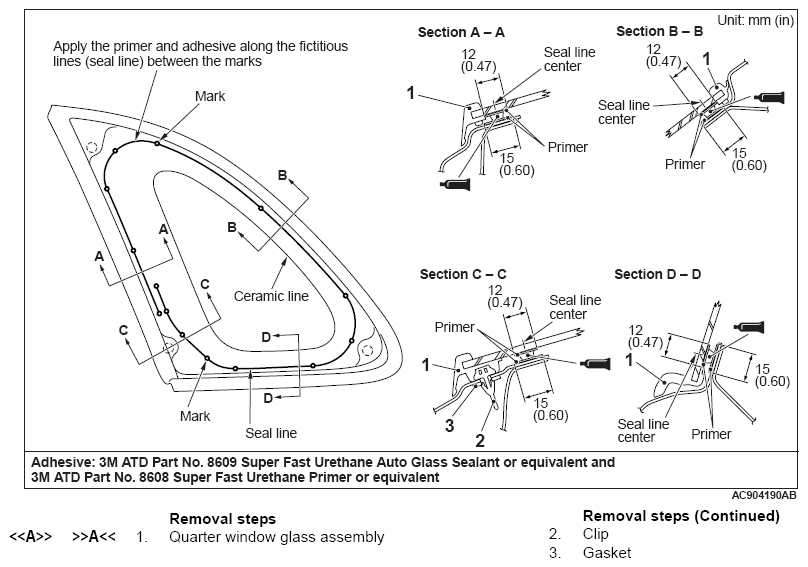

Fig 2: Identifying Quarter Window Glass Remove/Install Components (2 Of 2)
G07048590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
