Home
>>
Mitsubishi
>>
2012
>>
Outlander SE, FWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Seat Assembly
>>
Second Seat Assembly
>>
Removal And Installation
Removal And Installation

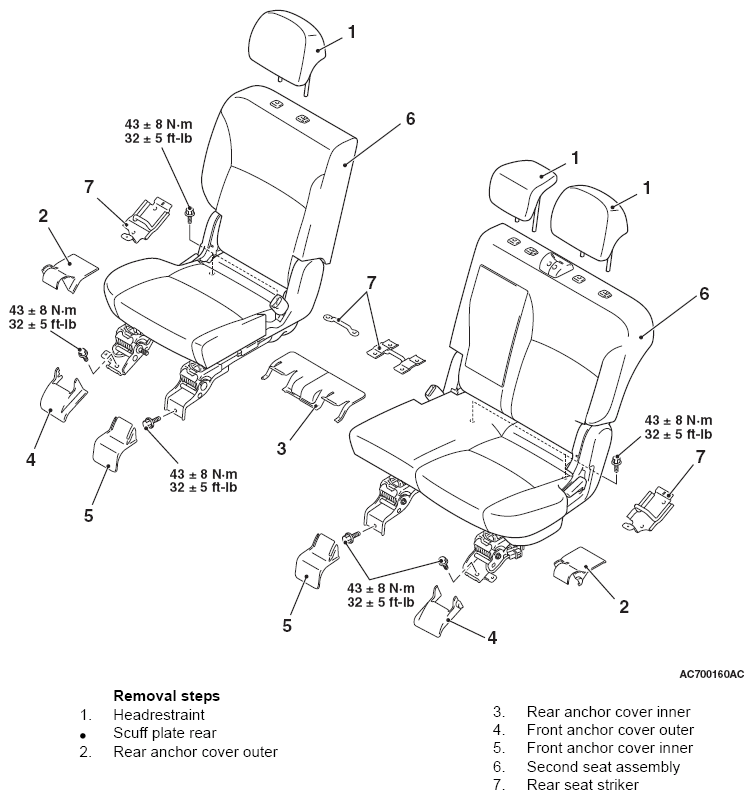

Fig 1: Second Seat Assembly Removal And Installation With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
