Inspection Procedure 2: Defective power supply system of the ignition switch: Notes

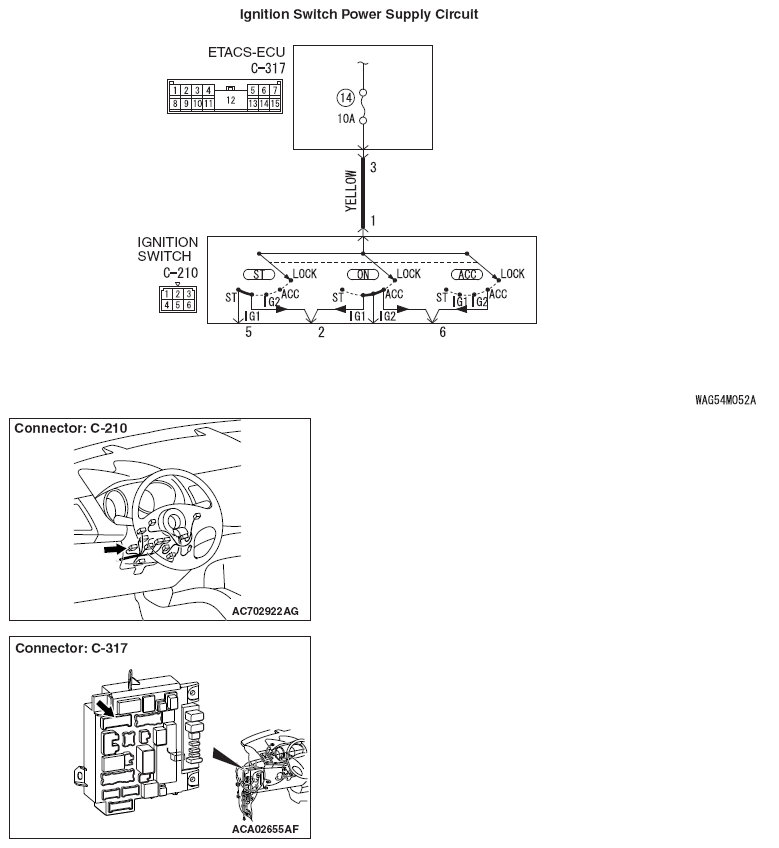

Fig 1: Ignition Switch Power Supply Circuit Diagram
G07041972Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
