>> A << Coil Spring Installation

  1. Fit the coil spring to the spring tube securely.
  2. Install the coil spring equipping with the spring tube to align the bottom with the shape of the strut spring sheet.

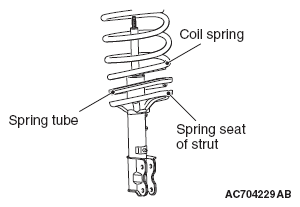

    Fig 1: Installing Coil Spring Equipping With Spring Tube To Align Bottom With Shape Of Strut Spring Sheet
    G07041744Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
