Disassembly And Assembly: Notes

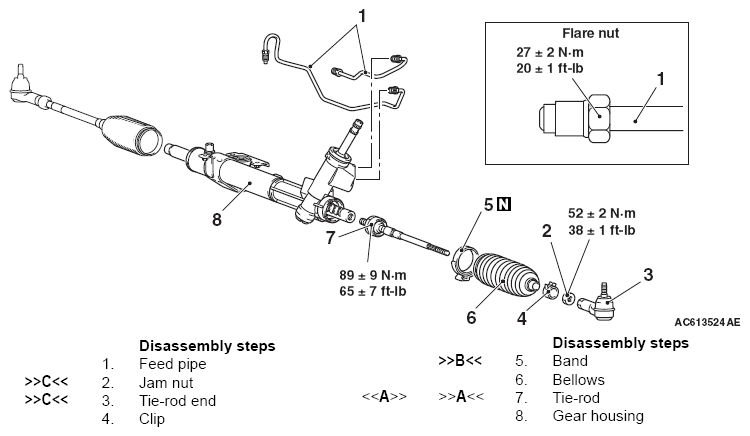

Fig 1: Power Steering Gear Box And Linkage Disassembly/Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992209: Boot band clipping tool
• MB992249: Variable spanner
