Disassembly And Assembly
Disassembly And Assembly

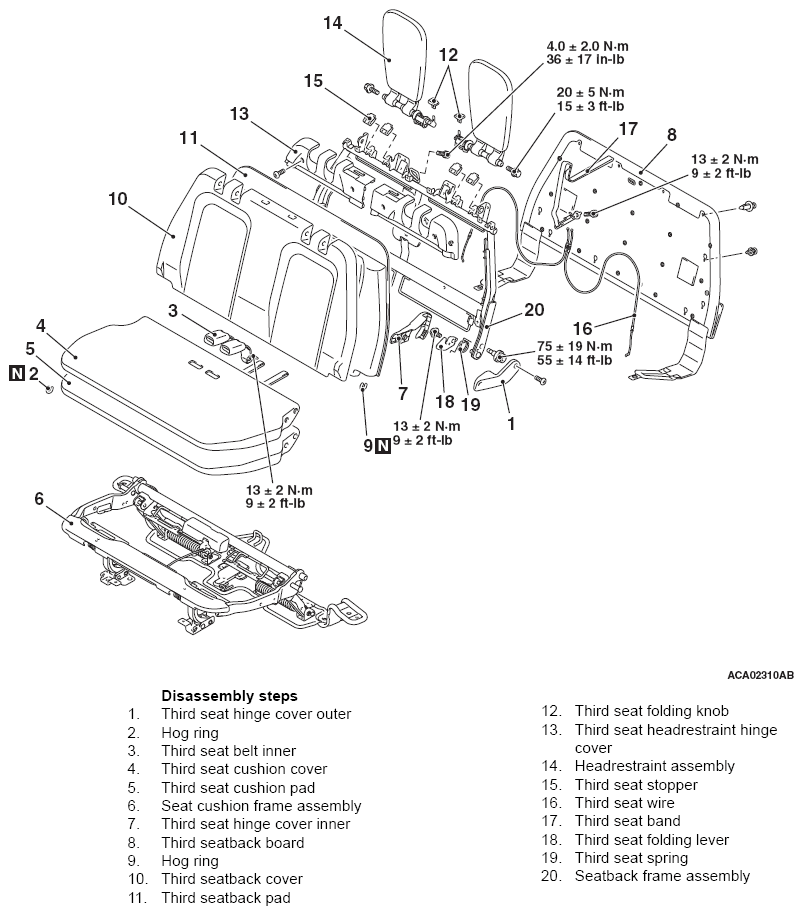

Fig 1: Third Seat Assembly Disassembly And Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
