Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control MFI
>>
Evaporative Emission Control System
>>
Component Location
Component Location

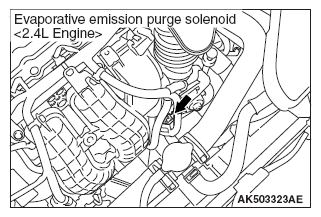

Fig 1: Locating Evaporative Emission Purge Solenoid (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

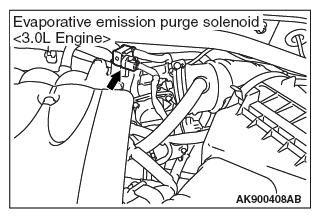

Fig 2: Locating Evaporative Emission Purge Solenoid (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

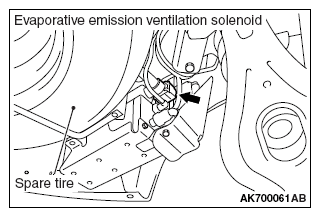

Fig 3: Locating Evaporative Emission Ventilation Solenoid
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
