Home >> Mitsubishi >> 2012 >> Lancer SE >> Repair and Diagnosis >> Steering >> Power Steering - Lancer >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

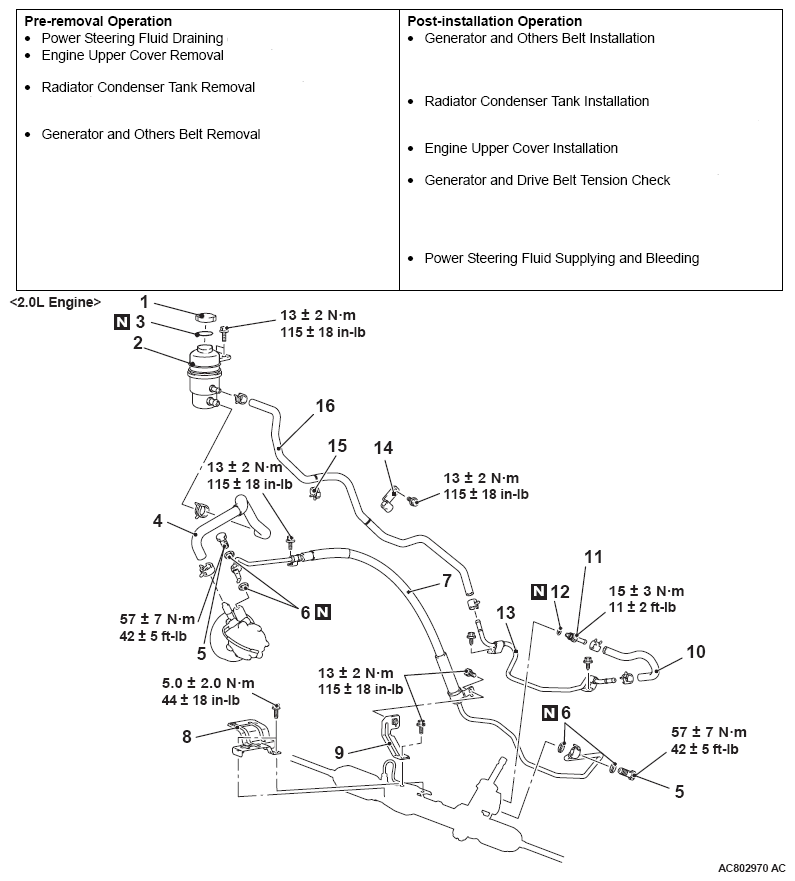

Fig 1: Power Steering Hoses With Torque Specifications (2.0L Engine)
G08294235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

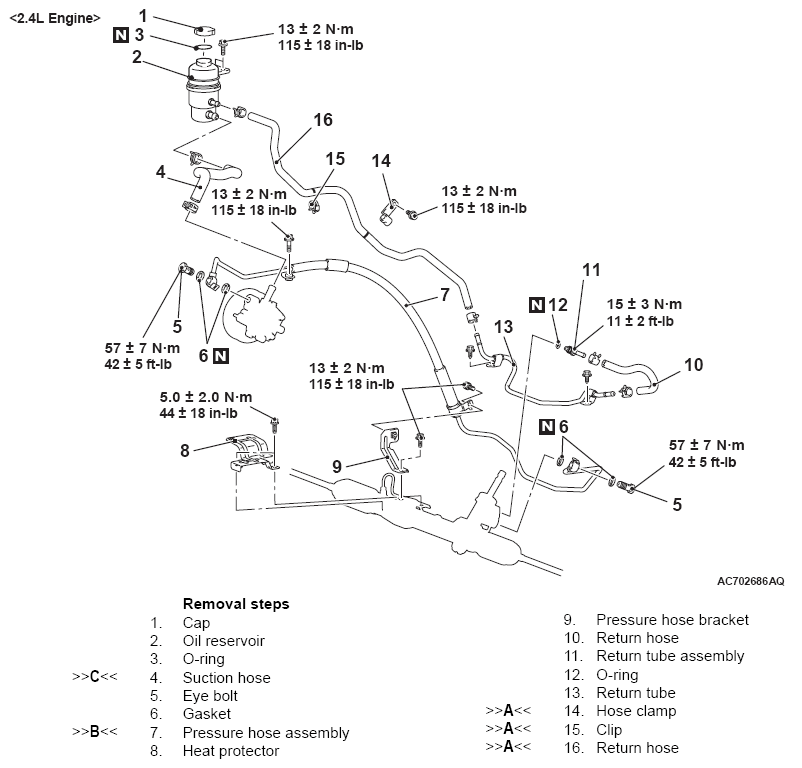

Fig 2: Power Steering Hoses With Torque Specifications (2.4L Engine)
G08294236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
