2.4L Engine

  1. Raise and support the front wheels.
    Fig 1: Identifying Return Hose And Container
    G06672995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Disconnect the return hose connection, and then connect a vinyl hose to the return hose, and drain the fluid into a container.

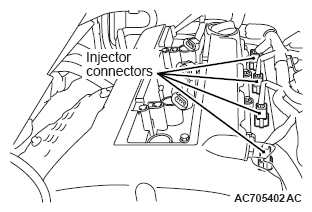

    Fig 2: Identifying Injector Connectors (2.4L Engine)
    G07032683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Disconnect the all of the injector connectors.
  4. While operating the starter motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.
  5. Connect the return hose securely, and then secure with the clip.
  6. Fill the oil reservoir with GENUINE MITSUBISHI POWER STEERING FLUID to the lower position of the filler, and then bleed the air (Refer to POWER STEERING SYSTEM AIR BLEEDING  ).
