Except Vehicles For RALLIART

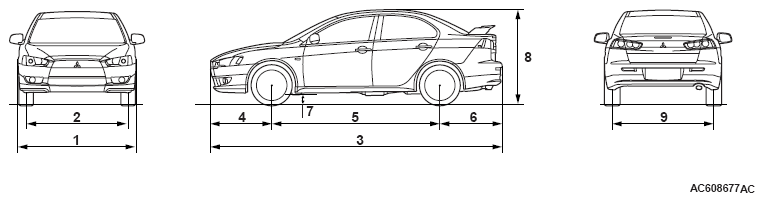

LANCER VEHICLE DIMENSIONS
| Item | DE | ||||
|---|---|---|---|---|---|
| CY4AS | |||||
| NLPL2M/NLPL3M/NLPL2CS | TLPL2M/TLPL3M | ||||
| Vehicle dimension mm (in) | Overall width | 1 | 1, 760 (69.4) | 1, 760 (69.4) | |
| Tread-front | 2 | 1, 530 (60.2) | 1, 530 (60.2) | ||
| Overall length | 3 | 4, 570 (180.0) | 4, 570 (180.0) | ||
| Overhang-front | 4 | 955 (37.6) | 955 (37.6) | ||
| Wheelbase | 5 | 2, 635 (103.7) | 2, 635 (103.7) | ||
| Overhang-rear | 6 | 980 (38.7) | 980 (38.7) | ||
| Ground clearance | 7 | 140 (5.5) | 140 (5.5) | ||
| Overall height (unladen) | 8 | 1, 480 (58.3) | 1, 480 (58.3) | ||
| Tread-rear | 9 | 1, 530 (60.2) | 1, 530 (60.2) | ||
| Vehicle weight kg (lb) | Curb weight | Without full optional parts | 1, 300 (2, 866) | 1, 330 (2, 932) | |
| With full optional parts | 1, 306 (2, 879) | 1, 336 (2, 945) | |||
| Gross vehicle weight rating | 1, 800 (3, 969) | 1, 800 (3, 969) | |||
| Gross axle weight rating-front | 1, 010 (2, 227) | 1, 010 (2, 227) | |||
| Gross axle weight rating-rear | 910 (2, 007) | 910 (2, 007) | |||
| Seating capacity | 5 | 5 | |||
| Engine | Model No. | 4B11 | 4B11 | ||
| Type | DOHC MIVEC < Low CO2 specification > | DOHC MIVEC < Low CO2 specification > | |||
| Piston displacement cm3 (cu in) | 1, 998 (121.9) | 1, 998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 110/6, 000 (148/6, 000) | 110/6, 000 (148/6, 000) | |||
| Maximum torque N m/r/min (ft-lb/r/min) | 197/4, 200 (145/4, 200) | 197/4, 200 (145/4, 200) | |||
| Fuel system | Fuel supply system | MFI | MFI | ||
| Transaxle | Model No. | F5MBB | F1CJA | ||
| Type | FWD, 5M/T | FWD, INVECS-III CVT | |||
| Turning radius m (ft) | 5.0 (16.4) | 5.0 (16.4) | |||
LANCER VEHICLE DIMENSIONS
| ITEM | ES | ||||
|---|---|---|---|---|---|
| CY4AS | |||||
| NSPL2M/NSPL3M/NSPL2CS | TSPL2M/TSPL3M/TSPL2CS | ||||
| Vehicle dimension mm (in) | Overall width | 1 | 1, 760 (69.4) | 1, 760 (69.4) | |
| Tread-front | 2 | 1, 530 (60.2) | 1, 530 (60.2) | ||
| Overall length | 3 | 4, 570 (180.0) | 4, 570 (180.0) | ||
| Overhang-front | 4 | 955 (37.6) | 955 (37.6) | ||
| Wheelbase | 5 | 2, 635 (103.7) | 2, 635 (103.7) | ||
| Overhang-rear | 6 | 980 (38.7) | 980 (38.7) | ||
| Ground clearance | 7 | 140 (5.5) | 140 (5.5) | ||
| Overall height (unladen) | 8 | 1, 480 (58.3) | 1, 480 (58.3) | ||
| Tread-rear | 9 | 1, 530 (60.2) | 1, 530 (60.2) | ||
| Vehicle weight kg (lb) | Curb weight | Without full optional parts | 1, 300 (2, 866) | 1, 330 (2, 932) | |
| With full optional parts | 1, 358 (2, 994) | 1, 388 (3, 060) | |||
| Gross vehicle weight rating | 1, 800 (3, 969) | 1, 800 (3, 969) | |||
| Gross axle weight rating-front | 1, 010 (2, 227) | 1, 010 (2, 227) | |||
| Gross axle weight rating-rear | 910 (2, 007) | 910 (2, 007) | |||
| Seating capacity | 5 | 5 | |||
| Engine | Model No. | 4B11 | 4B11 | ||
| Type | DOHC MIVEC < Low CO2 specification > | DOHC MIVEC < Low CO2 specification > | |||
| Piston displacement cm3 (cu in) | 1, 998 (121.9) | 1, 998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 110/6, 000 (148/6, 000) | 110/6, 000 (148/6, 000) | |||
| Maximum torque N m/r/min (ft-lb/r/min) | 197/4, 200 (145/4, 200) | 197/4, 200 (145/4, 200) | |||
| Fuel system | Fuel supply system | MFI | MFI | ||
| Transaxle | Model No. | F5MBB | F1CJA | ||
| Type | FWD, 5M/T | FWD, INVECS-III CVT | |||
| Turning radius m (ft) | 5.0 (16.4) | 5.0 (16.4) | |||
