Starter Relay Check

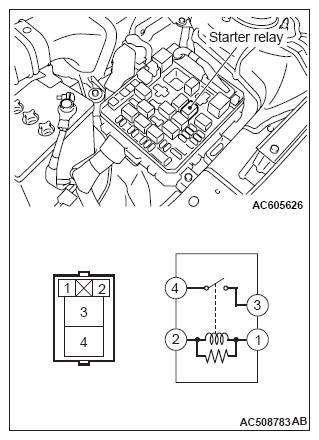

Fig 1: Starter Relay Connector Terminal Identification
G08290695Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STARTER RELAY TEST TABLE

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 4 - 3 Open circuit
Connect terminal number 2 and battery (+) terminal. Connect terminal number 1 and battery (-) terminal. Continuity (Less than 2 ohms)
