Removal And Installation (2.0L Engine Turbo): Notes

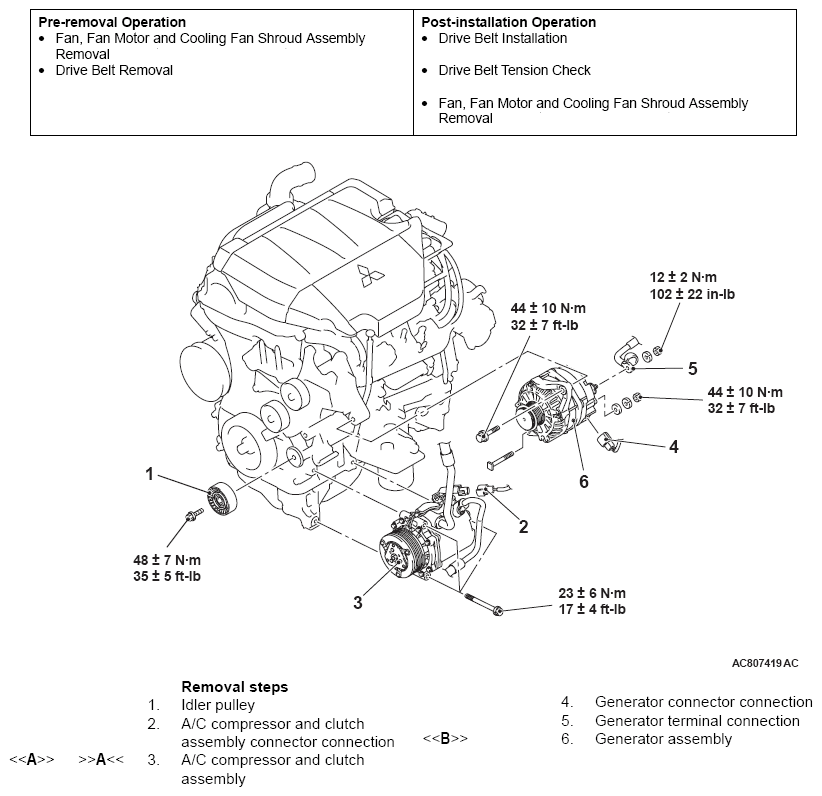

Fig 1: Generator Assembly Components With Torque Specifications (2.0L Engine Turbo)

G08290670

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
