Removal And Installation: Notes

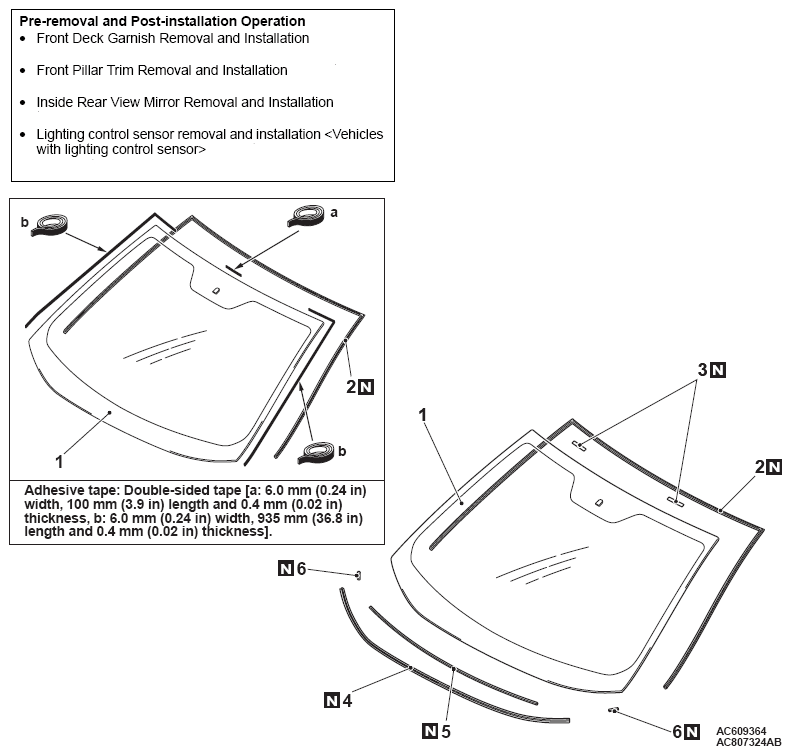

Fig 1: Windshield Components (1 Of 2)
G08294350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

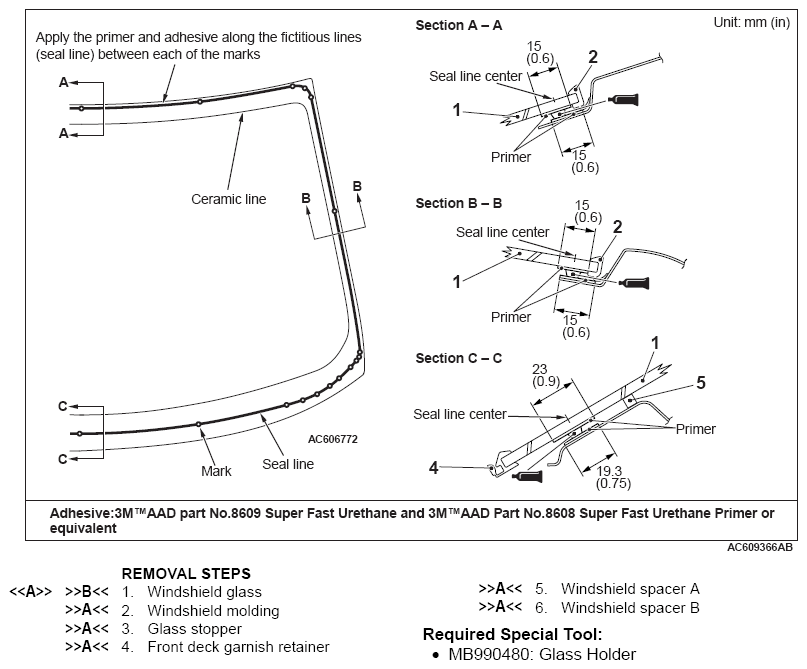

Fig 2: Windshield Components (2 Of 2)
G08294351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
