Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine

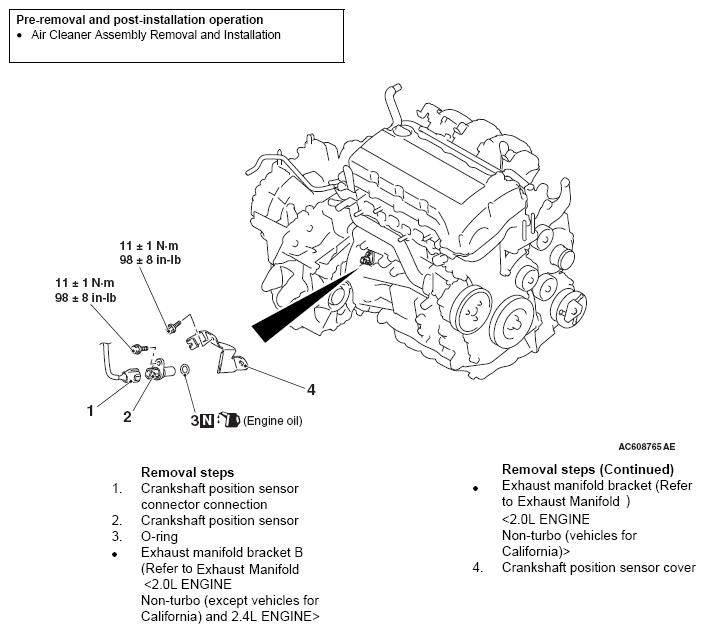

Fig 1: Crankshaft Position Sensor Components With Torque Specifications (2.0L Engine Non-Turbo, 2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
