Other Devices

Name	Symbol
A/C compressor clutch assembly (incorporating A/C refrigerant temperature switch)	B
Power steering pressure switch < Non-turbo (2.4L Engine) and Turbo >	A

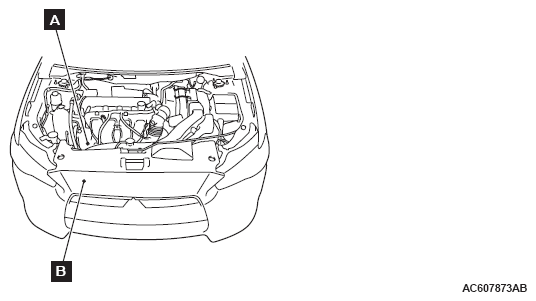

Fig 1: Identifying Other Devices Location

G08303998

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

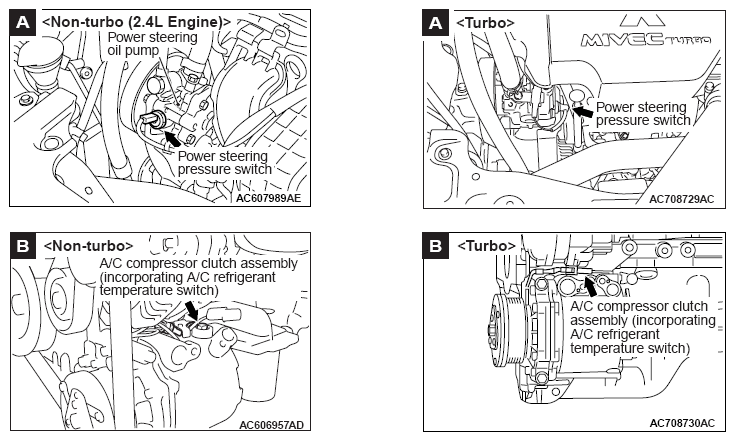

Fig 2: Locating Other Devices

G08303999

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
