Clip Position

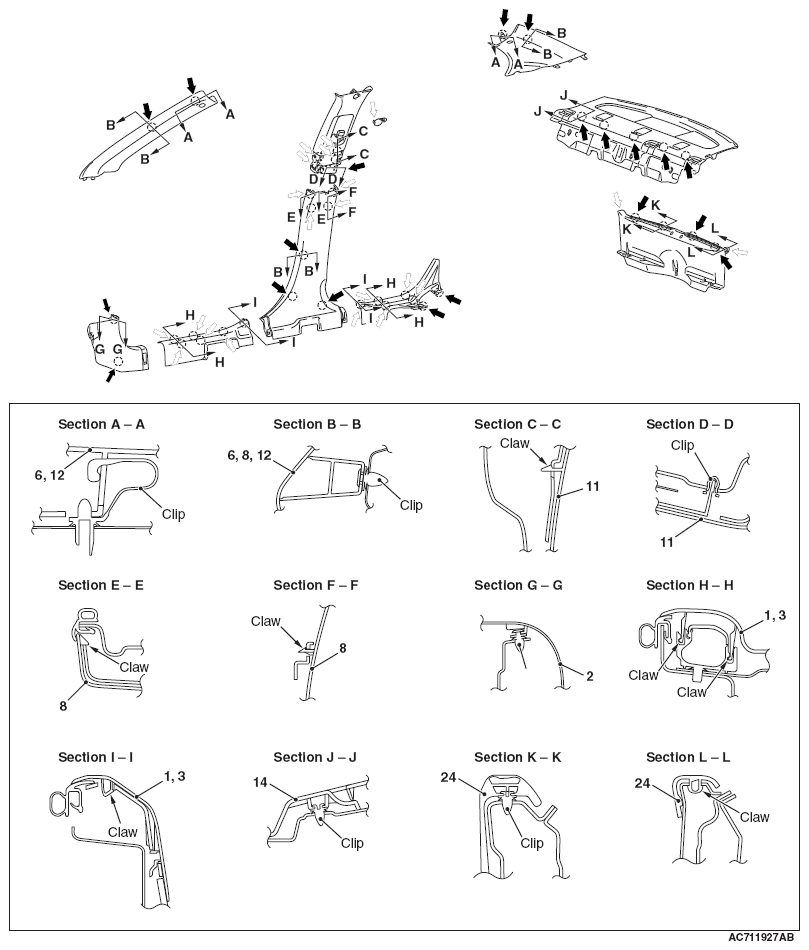

Fig 1: Identifying Trim Clip Positions

G06677981

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Each number in the illustration indicates a part number.
