Removal And Installation

WARNING: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

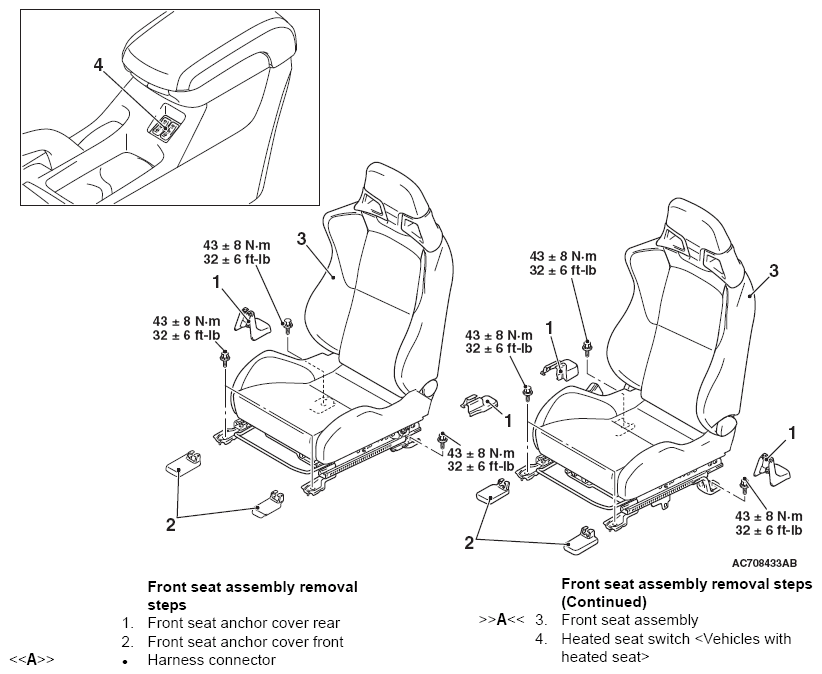

Fig 1: Removal & Installation Of Front Seat Assembly With Torque Specifications
G06677990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
