Inspection Procedure 3: When The Speech Switch Is Pressed, The Voice Information Is Output, But The Voice Recognition Is Not Performed: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

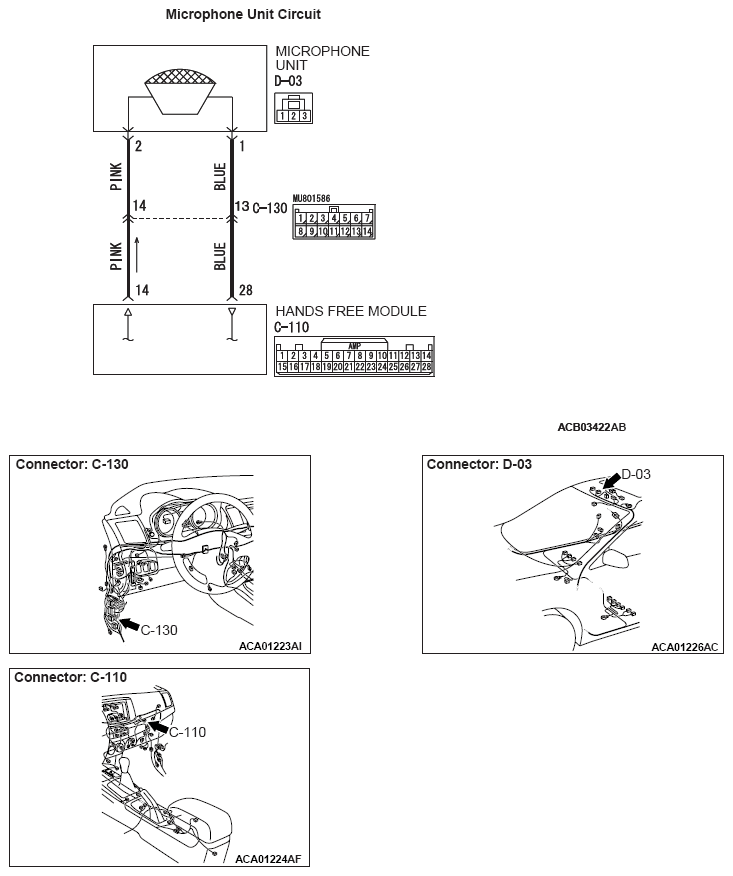

Fig 1: Microphone Unit Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
