Inspection Procedure 2: The USB Adapter Data Cannot Be Replayed - Vehicles With MMCS: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

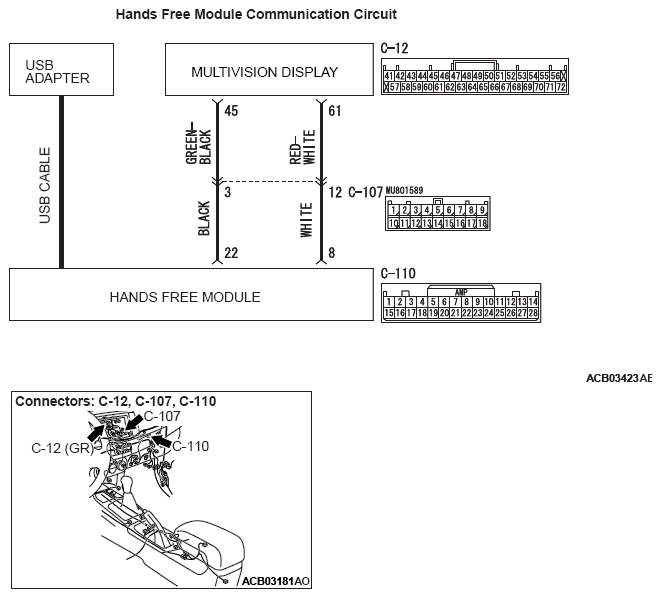

Fig 1: Hands Free Module Communication Circuit
G08296332Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
