Fuel Supply System - Lancer Evolution
>>
Fuel Tank
>>
Disassembly And Assembly
>>
Fuel Tank Assembly
Fuel Tank Assembly

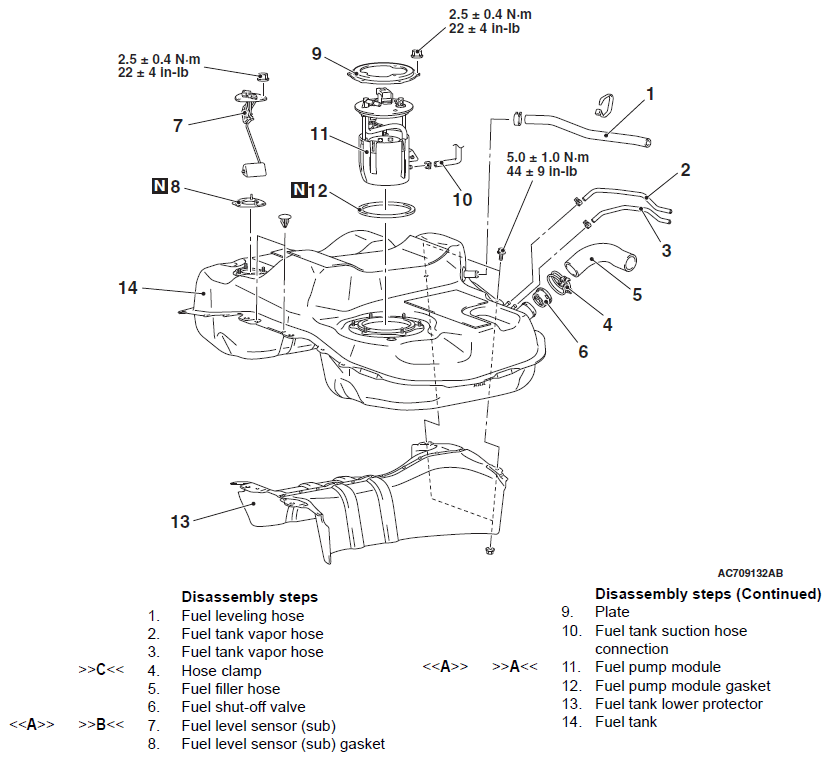

Fig 1: Exploded View Fuel Tank Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
