Engine Overhaul - Lancer Evolution
>>
Timing Chain
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

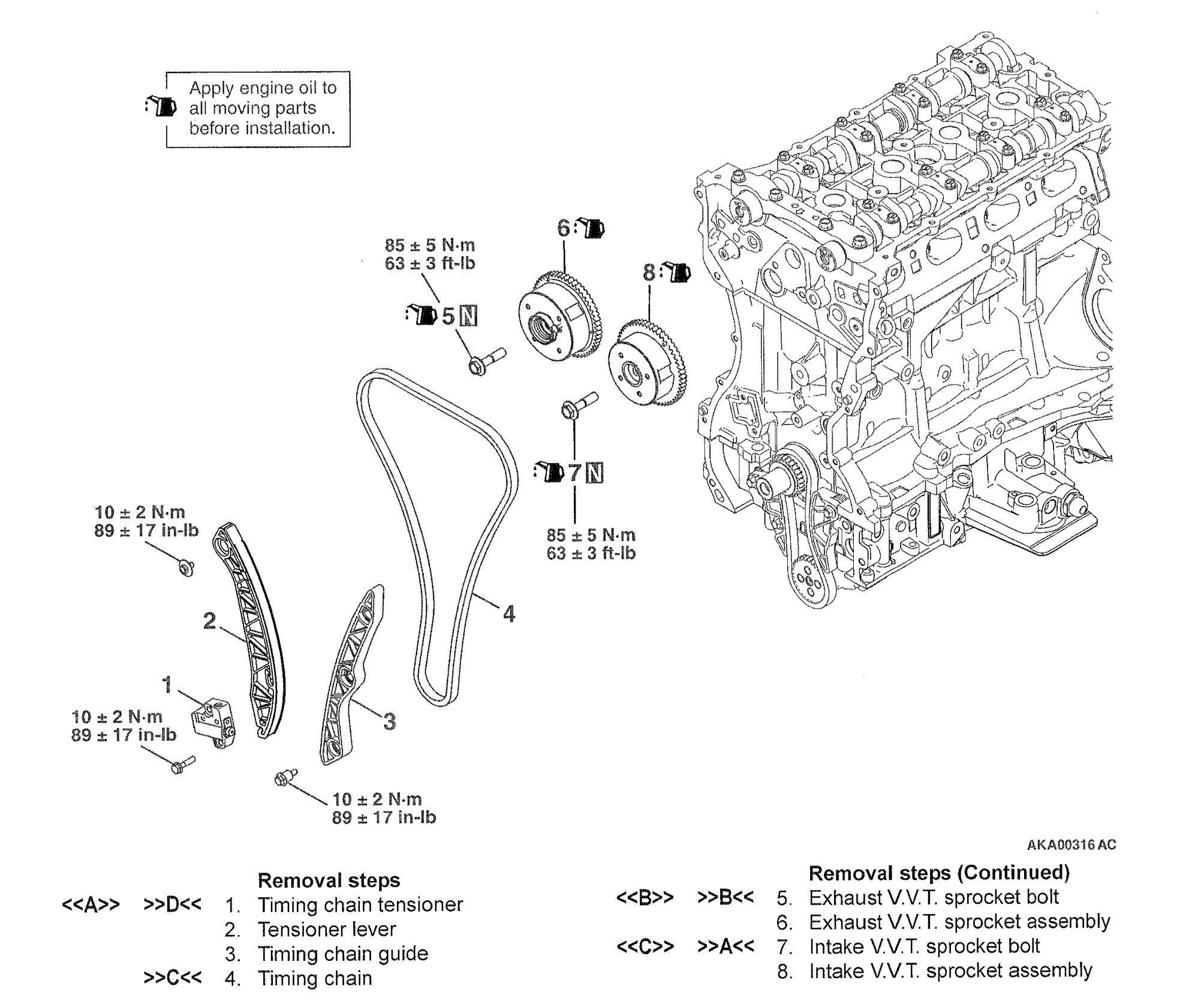

Fig 1: Removal/Installation Of Timing Chain Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
