Removal And Installation: Notes

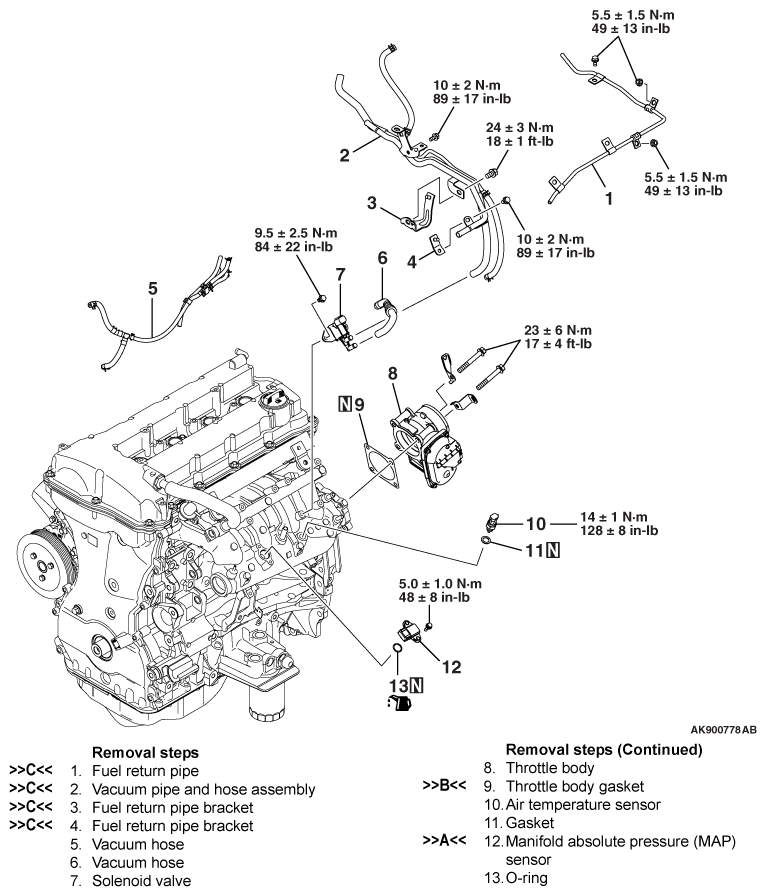

Fig 1: Removal/Installation Of Throttle Body With Torque Specifications
G06674120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
