Removal And Installation: Notes

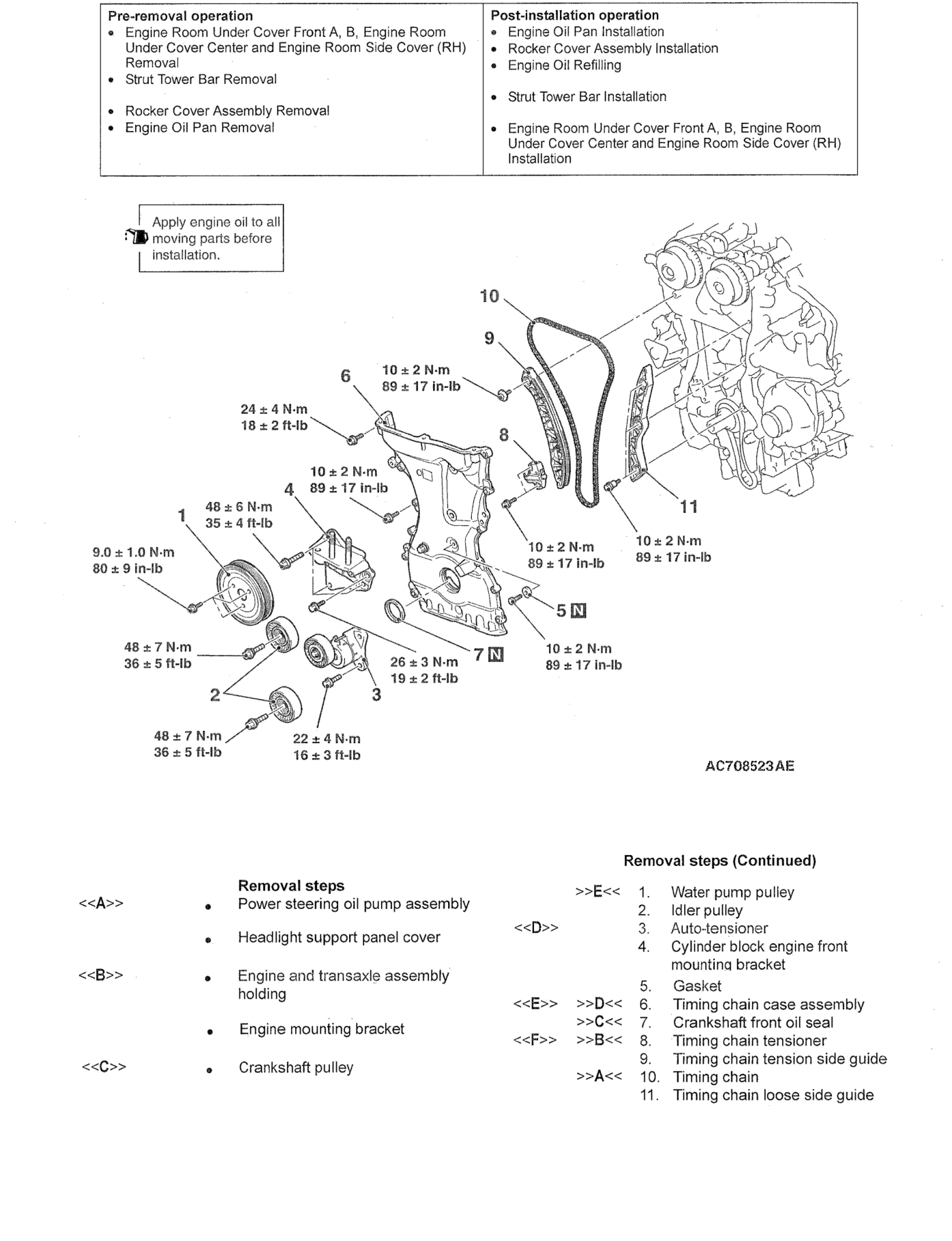

Fig 1: Timing Chain Components With Torque Specifications
G00505387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
