Engine And Transaxle

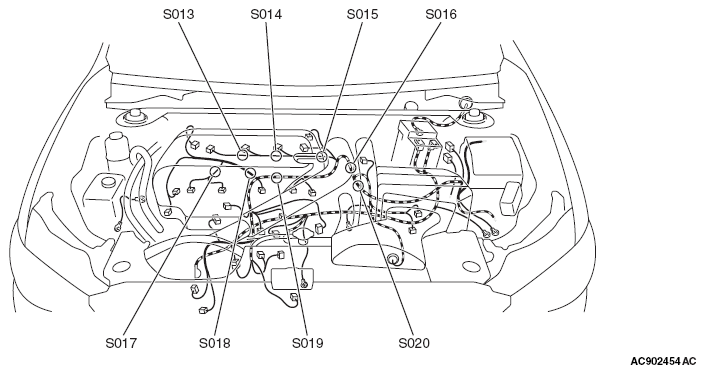

Fig 1: Identifying Splice Locations - Engine & Transaxle

G08304646

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
