Home >> Mitsubishi >> 2012 >> Lancer Evolution MR >> Repair and Diagnosis >> Electrical >> Body Electrical >> Battery - Lancer Evolution >> Removal And Installation >> Battery

Removal And Installation: Battery

WARNING: When installing the battery, securely connect the exhaust battery cover hose.

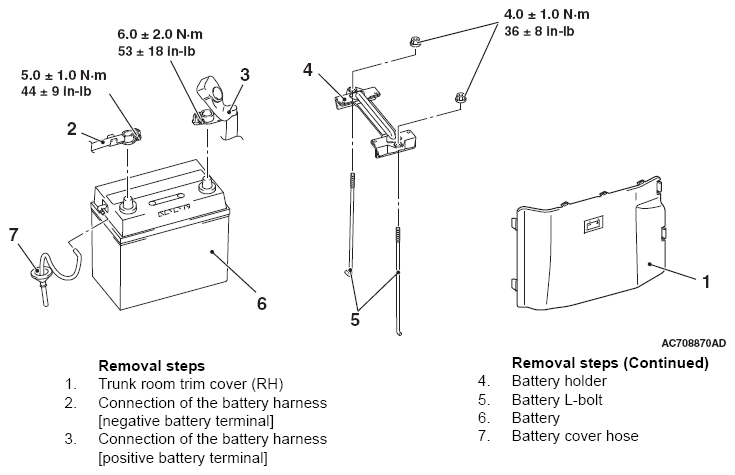

Fig 1: Battery Components With Torque Specifications
G06678014Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
