Splash Shield - Lancer Evolution
>>
Removal And Installation
Removal And Installation

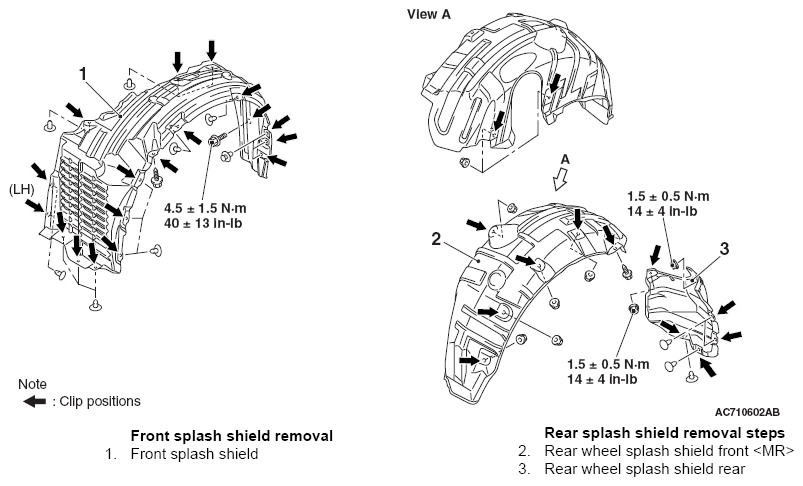

Fig 1: Removing/Installing Front & Rear Splash Shield With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
