Disassembly And Assembly: Notes

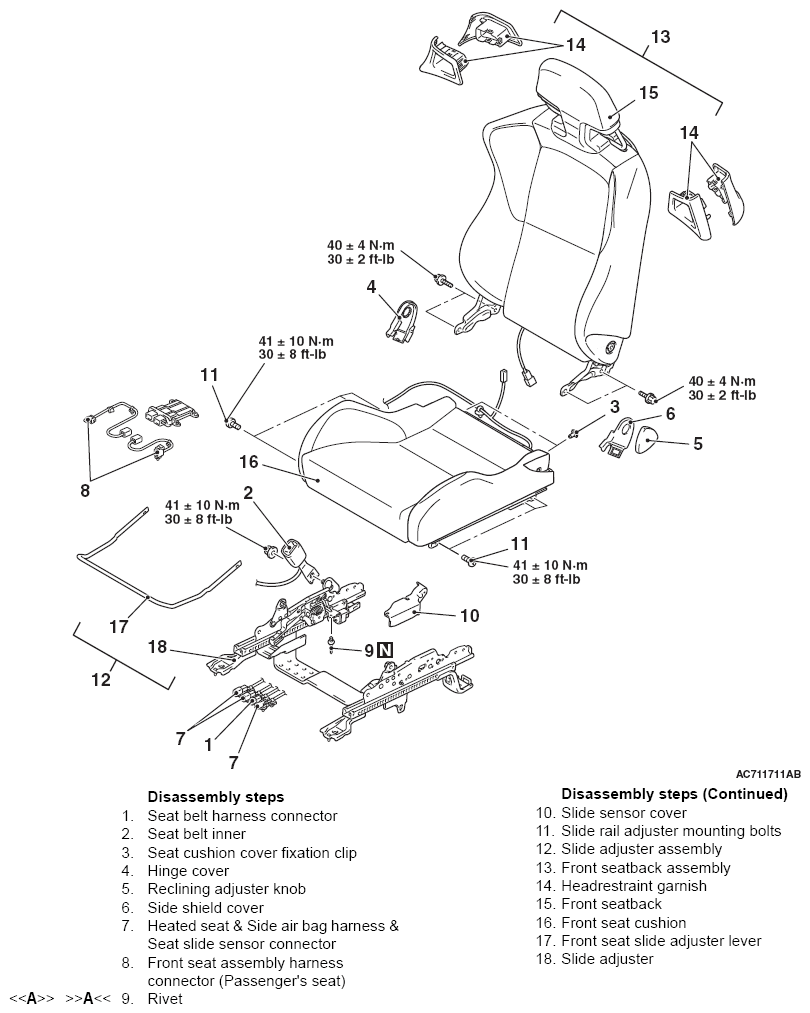

Fig 1: Seat Assembly Components With Torque Specifications

G06677998

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
