Removal And Installation: Notes

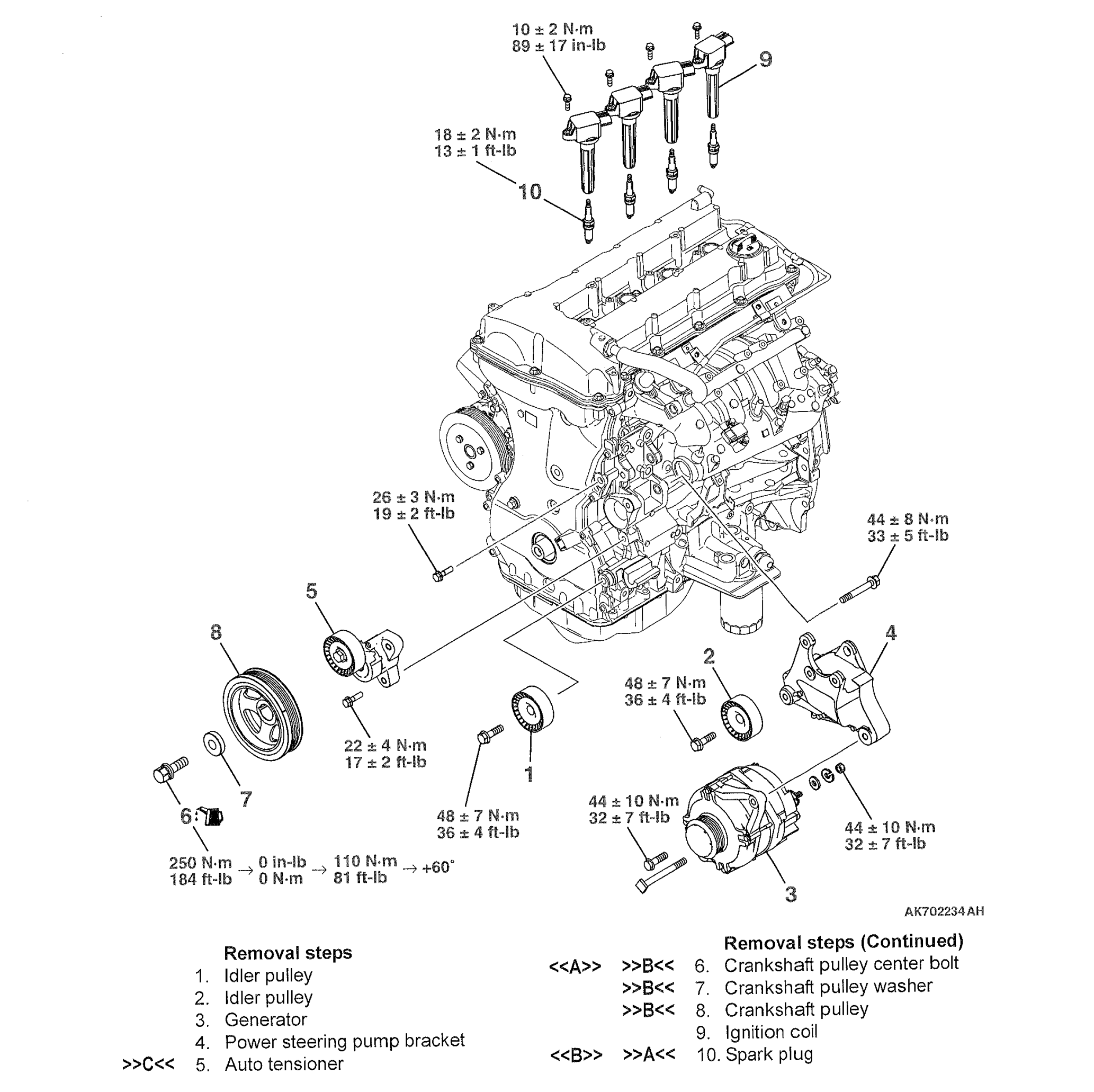

Fig 1: Removal/Installation Of Generator & Ignition System With Torque Specifications
G00505431Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
