Disassembly And Assembly: Notes

CAUTION: As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.

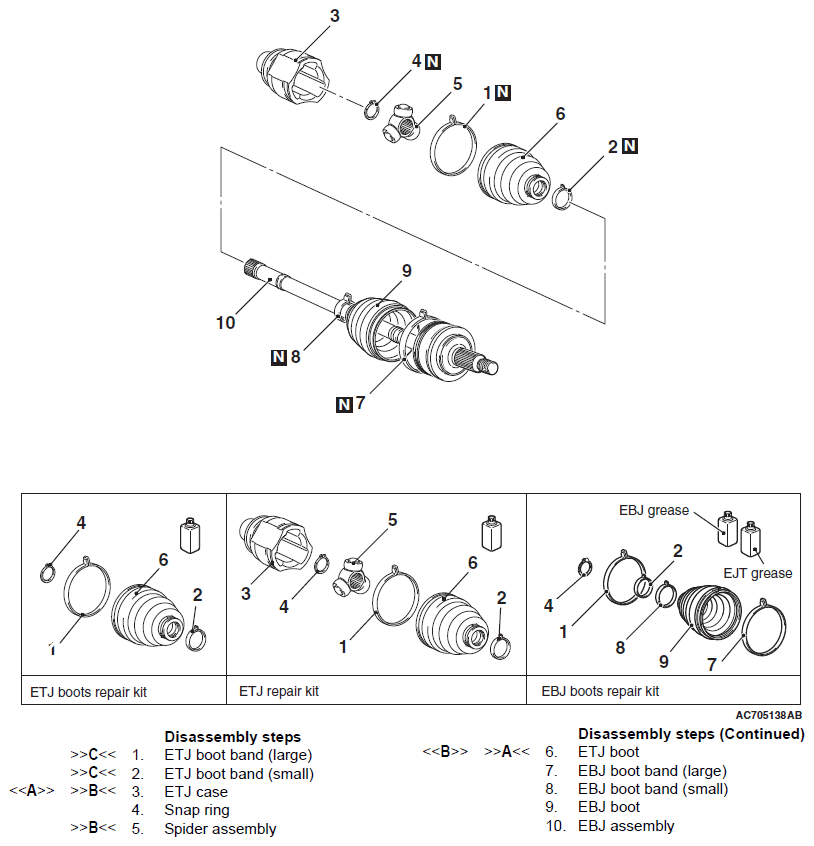

Fig 1: Exploded View Of Driveshaft Assembly
G06677429Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
