Inspection Procedure 2: The Keyless Operation Key Cannot Be Registered Using Scan Tool: Notes

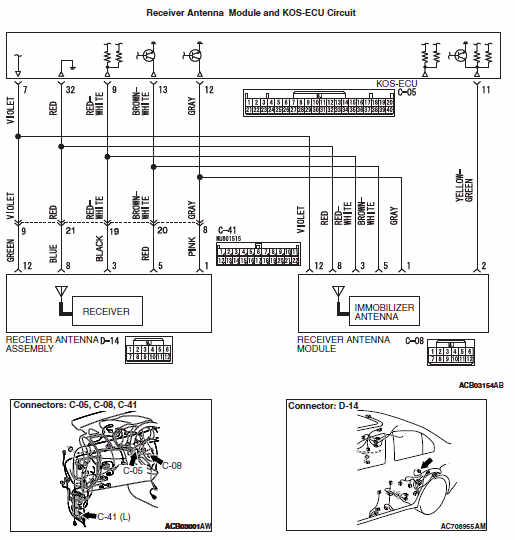

Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram

G00529013

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
