Disassembly And Assembly: Notes

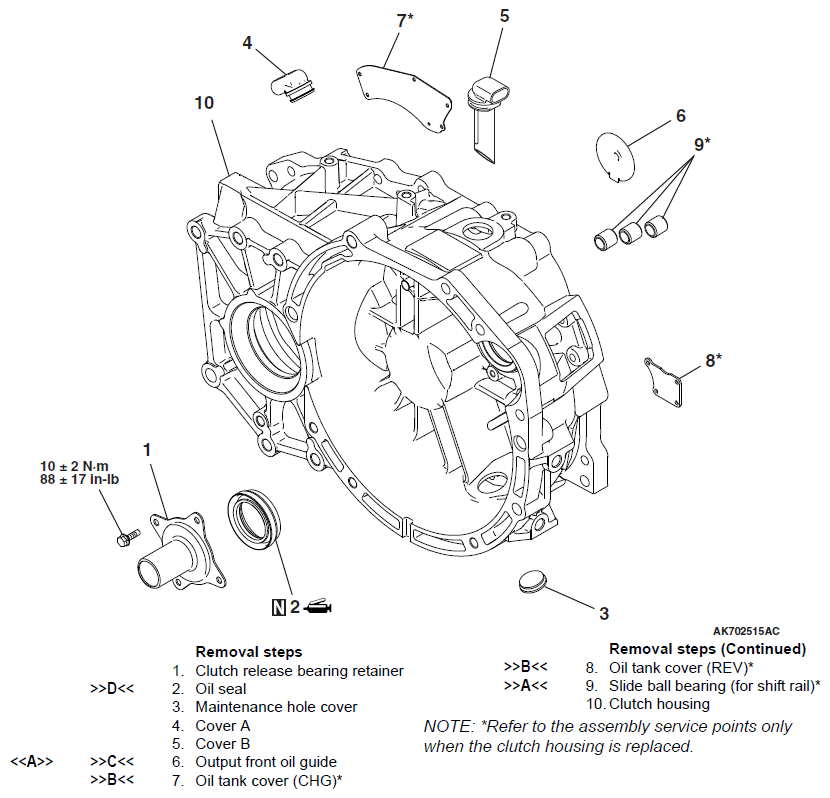

Fig 1: Exploded View Of Clutch Housing With Torque Specifications
G06677035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: * Refer to the assembly service points only when the clutch housing is replaced.

Required Special Tools:
